Perforated Metal Sunshade

View Infill Panel Designs


Ametco® perforated Sunshades begin with 1/8" thick  aluminum or galvanized sheets that provide from 10% to 50% open area. There are numerous patterns and styles of perforations to choose from. The angle or tube frame required is engineered for each job based on the span.




Style 331     1" x 4" Round End Slot 1" Side Bar 2" End Bar 30% Open Area

Style 332     2" Round Perforations 3.25" Straight Row Centers 30% Open Area

View Ametco's 20 Year Warranty

Bookmark and Share
CAD Drawings
Please click on thumbnail below to load a larger image:
Printable page of all CAD drawings in this section
Round Perforations Staggered Centers Round Perforations Staggered Centers
end staggered slot end staggered slot
Round Hole - Str. Line Centers Round Hole - Str. Line Centers
Round End Slot Side Staggered Round End Slot Side Staggered
Square Perforations Straight Row Square Perforations Straight Row
Square Perforation Staggered Centers Square Perforation Staggered Centers
Sunshade Hardware - Intermediate Outrigger for Curtain Wall Mounting Sunshade Hardware - Intermediate Outrigger for Curtain Wall Mounting
Sunshade Hardware - Intermediate Outrigger for Structural Column or Concrete Wall Sunshade Hardware - Intermediate Outrigger for Structural Column or Concrete Wall
Suspended Rod Connection Suspended Rod Connection
Support Rod Connection Support Rod Connection
Sunshades - Perforated Patterns Sunshades - Perforated Patterns
SUNSHADE 332 SUNSHADE 332
SUNSHADE 331 SUNSHADE 331
Downloads
Perforated Metal (606.58 KB)
8 page pdf of perforated fencing, gates, railing and sunshades in steel, aluminum and stainless steel
Sunshade Brochure (1.53 MB)
4-page PDF of bar grille, extruded aluminum, louver and perforated sunshades including CAD drawings and photos.
05 75 10 Master Spec for Perforated metal panels (71.5 KB)
Master Spec For Perforated metal being used as Sunshade, Railing infill panels and fencing
10 71 14 Master Spec for Sunshade (80 KB)
 Master Spec for metal Sunshade

Panel Designs
Style 331 sunshade
1" x 4" Round End Slot, 1" Side Bar, 2" End Bar - 30% Open Area
Style 332 sunshade
2" Round Perforations, 3.25" Straight Row Centers, 30% Open Area

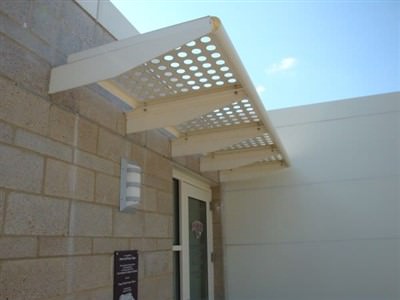

Perforated S...

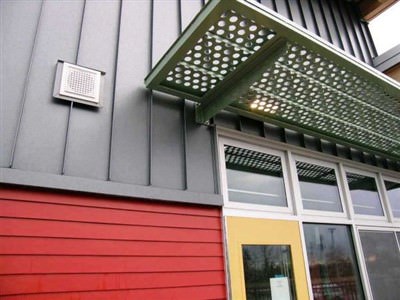

Perforated S...

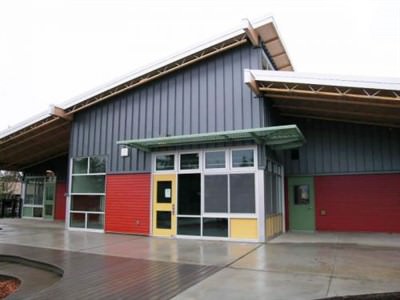

FEDERAL WAY ...

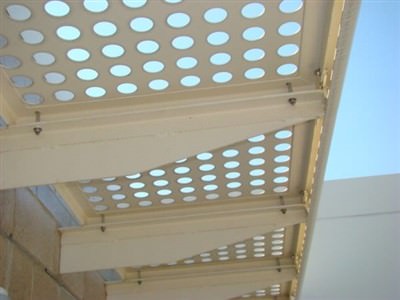

Perforated S...
