Made In USA
Ametco railings are designed for use on balcony, decks and stairs. The core elements of Ametco’s railing systems are architectural panels in steel or aluminum that bolt directly onto the railing system uprights. This allows for quick and easy installation, simple maintenance and immense flexibility. The panels come in a variety of aesthetically pleasing styles that work visually in any environment, while surpassing the security and longevity requirements of architects and commercial property owners. Panel sections for railings are available in a variety of styles, patterns and sizes. Installation is fast and efficient, and the modular design keeps panel replacement simple.
The railings are manufactured to be both functional and decorative, harmonizing visually with any environment. Radial pattern railings and other designs can be custom fabricated. Just provide us with specifications for a quote.
Each railing system is built to withstand a 200 lb. load in any direction. Ametco railings are available in electro-forged welded steel design which provides complete penetration of the cross member, aluminum extrusions and perforated steel, aluminum or stainless steel. A polyester powder coating, available in 15 standard colors, makes the railings durable and able to withstand exposure to the elements.

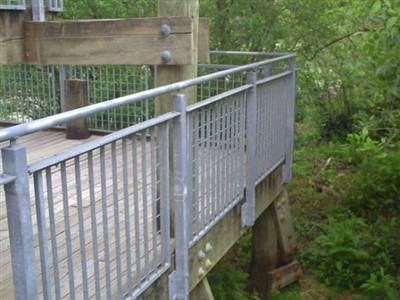

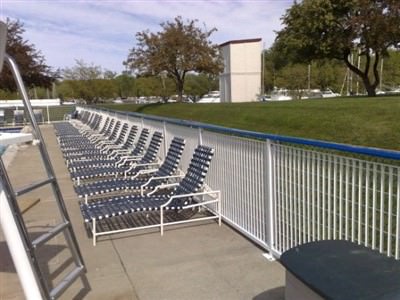

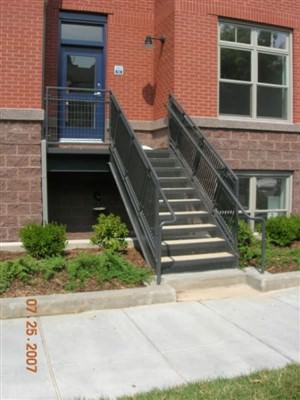

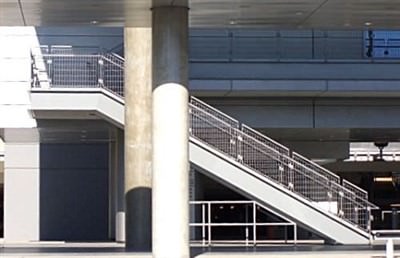

Deck and balcony railings use a straight infill panel system while stair railings can use straight infill panels or raked panels to have the main bar run vertical.







All of Ametco's railings are manufactured in the USA

Infill Panels

The following panel designs are common for this type of application. Hover over the panel to view more information about the design.

Apollo

Apollo

Apollo Design by Ametco is an open mesh aluminum fencing. The open area of the Apollo Design is 75% giving excellent strength and good visibility.

Polaris

Polaris

Polaris infill panels are custom fabricated from die formed perforated and radius sections.

Sedona

Sedona

The Sedona Design fencing by Ametco is manufactured from aluminum extrusions

Venus

Venus

The Venus Design fencing by Ametco is manufactured from extruded aluminum tube.


CAD Drawings

Ametco provides CAD drawings in various formats to add to your project spec. Click the name or icon of the desired format to download.

To view a larger version of the thumbnail image, click the magnifying glass after hovering over the image.

Polaris Design

Polaris Design

DWG DWF PDF VWX

Sedona Design

Sedona Design

DWG DWF PDF VWX

Apollo Design

Apollo Design

DWG DWF PDF VWX

Galaxy Design

Galaxy Design

DWG DWF PDF VWX

Venus Design

Venus Design

DWG DWF PDF VWX SketchUp

Railing Systems - Perforated Patterns

Railing Systems - Perforated Patterns

DWG DWF PDF VWX SketchUp

ADDITIONAL AMETCO DESIGN

ADDITIONAL AMETCO DESIGN

DWG DWF PDF VWX

OPTIONAL MOUNTING

OPTIONAL MOUNTING

DWG DWF PDF VWX

TOP RAIL

TOP RAIL

DWG DWF PDF VWX

RAILING INSTALLATION

RAILING INSTALLATION

DWG DWF PDF VWX
